  • INGERSOLL 15B1B04243X8R00 Milling Cutter Button Cutter 1.654 Screw M16 4 Flute Coolant 0.2362 Max DOC

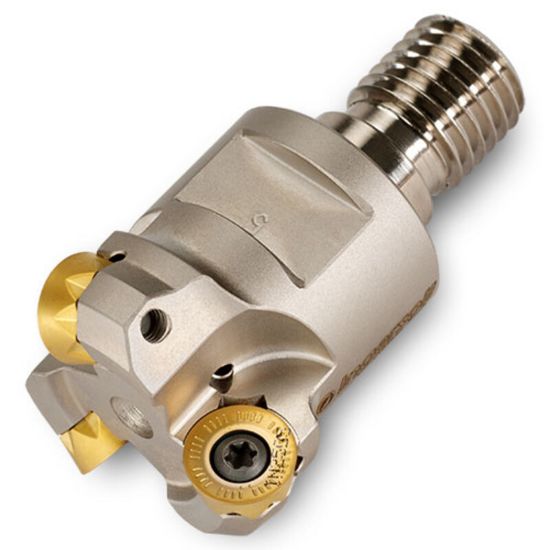

Picture of INGERSOLL 15B1B04243X8R00 Milling Cutter Button Cutter 1.654 Screw M16 4 Flute Coolant 0.2362 Max DOC

INGERSOLL 15B1B04243X8R00 Milling Cutter Button Cutter 1.654 Screw M16 4 Flute Coolant 0.2362 Max DOC

ANSI: 15B1B04243X8R00

ISO: 15B1B04243X8R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3108190
Delivery date: 3-5 days
$466.67
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Face Milling, Round Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Cutter Dia 1.6540 42.11MM
Tool Material Steel
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Depth Of Cut Max 0.2362
Cut Dia Max 1.6540 42.01MM
Insert Size Ic 12
Cut Dia Min 1.1810 30.00MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 12.00°
Coolant Thru Yes
Insert Style RJ
