  • INGERSOLL 15B1B03243X8R00 Milling Cutter Button Cutter 1.260 Screw M16 3 Flute Coolant 0.2362 Max DOC

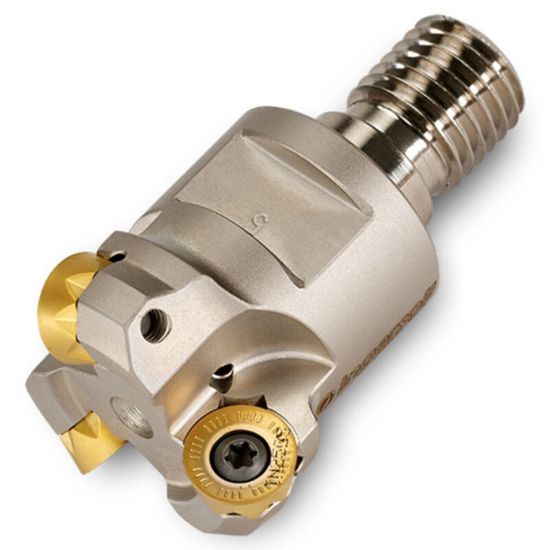

Picture of INGERSOLL 15B1B03243X8R00 Milling Cutter Button Cutter 1.260 Screw M16 3 Flute Coolant 0.2362 Max DOC

INGERSOLL 15B1B03243X8R00 Milling Cutter Button Cutter 1.260 Screw M16 3 Flute Coolant 0.2362 Max DOC

ANSI: 15B1B03243X8R00

ISO: 15B1B03243X8R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3106917
Delivery date: 3-5 days
$373.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 1.2600 32.00MM
Depth Of Cut Max 0.2362
Insert Size Ic 12
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 12.00°
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
