  • INGERSOLL 15B1B-15015X8R01 Milling Cutter Button Cutter 1.500 Screw M16 3 Flute Coolant 0.2362 Max DOC

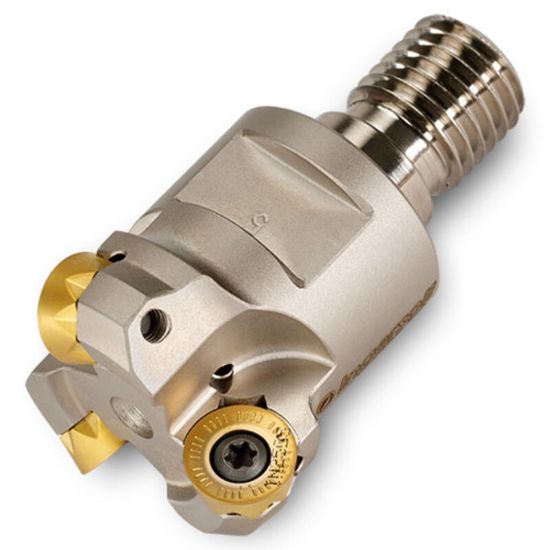

Picture of INGERSOLL 15B1B-15015X8R01 Milling Cutter Button Cutter 1.500 Screw M16 3 Flute Coolant 0.2362 Max DOC

INGERSOLL 15B1B-15015X8R01 Milling Cutter Button Cutter 1.500 Screw M16 3 Flute Coolant 0.2362 Max DOC

ANSI: 15B1B-15015X8R01

ISO: 15B1B-15015X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3032529
Delivery date: 3-5 days
$411.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Pocket Milling, Face Milling, Round Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Insert Size Ic 12
Depth Of Cut Max 0.2362
Machine Side Connection Size M16
Flutes/Inserts 3
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.0280 26.11MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Screw On
Cutting & Machining Properties
Max Ramp Angle 6.00°
Insert Style RJ
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
