  • INGERSOLL 15B1B-1202781R01 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute Coolant 0.236 Max DOC 5.000 OAL

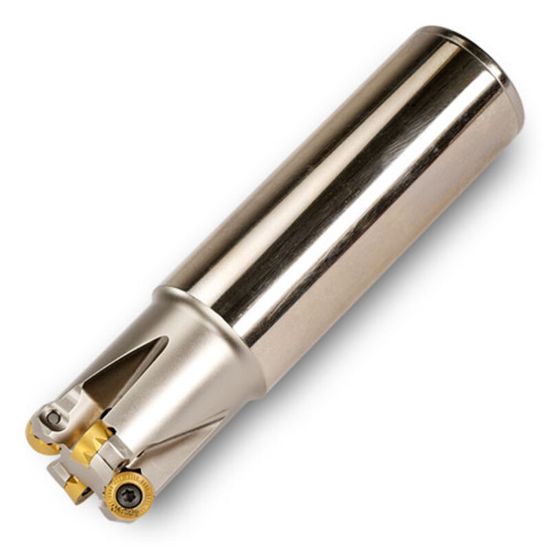

Picture of INGERSOLL 15B1B-1202781R01 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute Coolant 0.236 Max DOC 5.000 OAL

INGERSOLL 15B1B-1202781R01 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute Coolant 0.236 Max DOC 5.000 OAL

ANSI: 15B1B-1202781R01

ISO: 15B1B-1202781R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3032511
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Pocket Milling, Face Milling, Ramp Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Cut Dia Max 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2360
Tool Material Steel
Cut Dia Min 0.7800 19.81MM
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Max Ramp Angle 5.00°
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Coolant Thru Yes
