  • INGERSOLL 15B1B-12020S9R01 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute Coolant 0.236 Max DOC 6.000 OAL

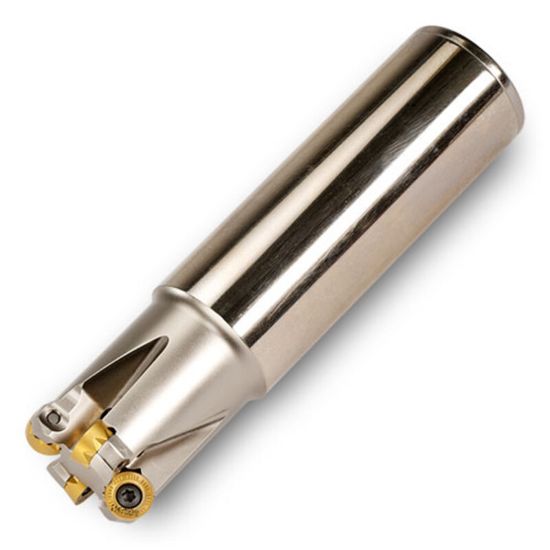

Picture of INGERSOLL 15B1B-12020S9R01 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute Coolant 0.236 Max DOC 6.000 OAL

INGERSOLL 15B1B-12020S9R01 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute Coolant 0.236 Max DOC 6.000 OAL

ANSI: 15B1B-12020S9R01

ISO: 15B1B-12020S9R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3032512
Delivery date: 3-5 days
$405.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Face Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Overall Len 6.0000 152.40MM
Insert Size Ic 12
Cut Dia Max 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutter Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2360
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 0.7800 19.81MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style RJ
Coolant Thru Yes
Max Ramp Angle 5.00°
Insert Shape/Cutter Pocket Shape Round
