  • INGERSOLL 15B1B-12015X8R01 Milling Cutter Button Cutter 1.250 Screw M16 3 Flute Coolant 0.2362 Max DOC

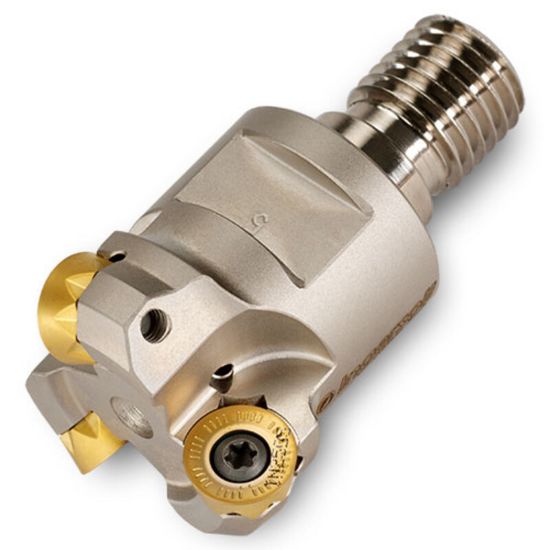

Picture of INGERSOLL 15B1B-12015X8R01 Milling Cutter Button Cutter 1.250 Screw M16 3 Flute Coolant 0.2362 Max DOC

INGERSOLL 15B1B-12015X8R01 Milling Cutter Button Cutter 1.250 Screw M16 3 Flute Coolant 0.2362 Max DOC

ANSI: 15B1B-12015X8R01

ISO: 15B1B-12015X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3032517
Delivery date: 3-5 days
$373.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 3
Insert Size Ic 12
Cut Dia Min 0.7800 19.81MM
Depth Of Cut Max 0.2362
Cut Dia Max 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size M16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RJ
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 5.00°
