  • INGERSOLL 15B1B-10020S1R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.236 Max DOC 6.000 OAL

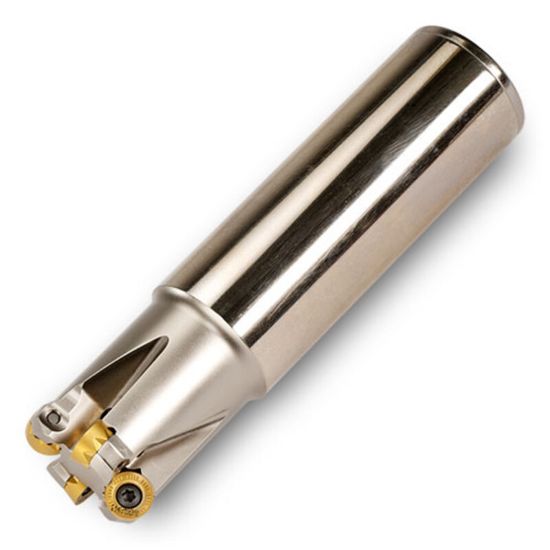

Picture of INGERSOLL 15B1B-10020S1R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.236 Max DOC 6.000 OAL

INGERSOLL 15B1B-10020S1R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.236 Max DOC 6.000 OAL

ANSI: 15B1B-10020S1R01

ISO: 15B1B-10020S1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3032510
Delivery date: 3-5 days
$301.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Ramp Milling, Pocket Milling
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2360
Insert Size Ic 12
Flutes/Inserts 2
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.5340 13.56MM
Overall Len 6.0000 152.40MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
