  • INGERSOLL 15B1A-12169X8R01 Milling Cutter Button Cutter 1.250 Screw M16 4 Flute Coolant 0.1969 Max DOC

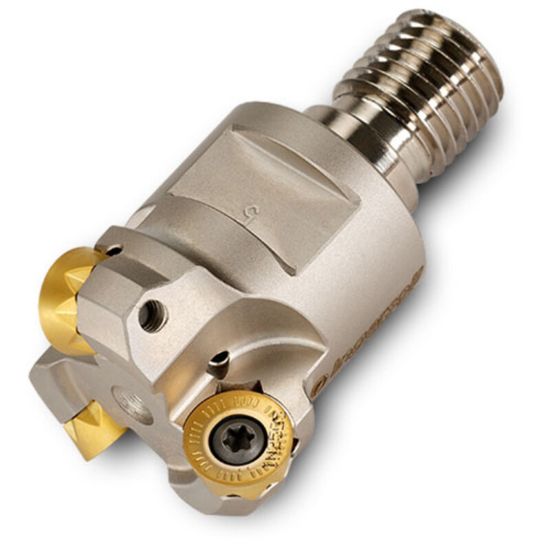

Picture of INGERSOLL 15B1A-12169X8R01 Milling Cutter Button Cutter 1.250 Screw M16 4 Flute Coolant 0.1969 Max DOC

INGERSOLL 15B1A-12169X8R01 Milling Cutter Button Cutter 1.250 Screw M16 4 Flute Coolant 0.1969 Max DOC

ANSI: 15B1A-12169X8R01

ISO: 15B1A-12169X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910448
Delivery date: 3-5 days
$368.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Round Milling, Face Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 10
Depth Of Cut Max 0.1969
Cut Dia Min 0.8580 21.79MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 10.00°
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
