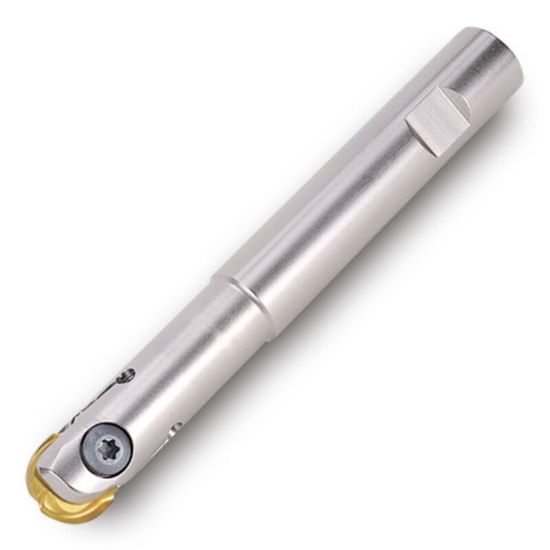

Picture of INGERSOLL 12W7V-0704084R01 Milling Cutter 0.750 Weldon 0.7500 2 Flute 0.37 Max DOC 6.000 OAL

INGERSOLL 12W7V-0704084R01 Milling Cutter 0.750 Weldon 0.7500 2 Flute 0.37 Max DOC 6.000 OAL

ANSI: 12W7V-0704084R01

ISO: 12W7V-0704084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3005701
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Profile Milling, Copy Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Insert Size Ic 19
Depth Of Cut Max 0.3700
Flutes/Inserts 2
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style NC
Coolant Thru No
