  • INGERSOLL 12S1E-1502781R01 Milling Cutter 90.0°, Drill Mill 1.500 Cylindrical 1.2500 1 Flute Coolant 1.26 Max DOC 5.000 OAL

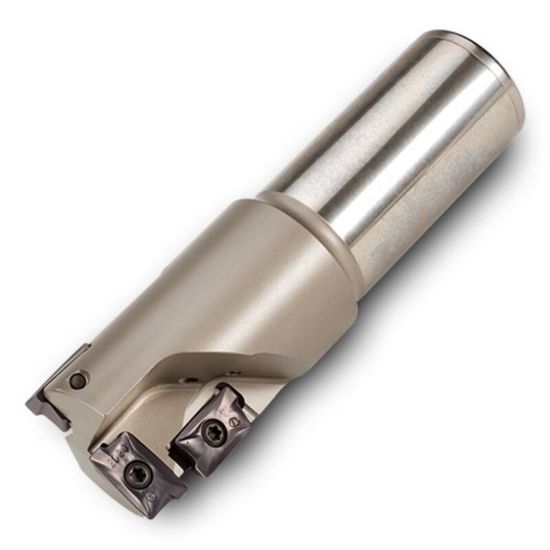

Picture of INGERSOLL 12S1E-1502781R01 Milling Cutter 90.0°, Drill Mill 1.500 Cylindrical 1.2500 1 Flute Coolant 1.26 Max DOC 5.000 OAL

INGERSOLL 12S1E-1502781R01 Milling Cutter 90.0°, Drill Mill 1.500 Cylindrical 1.2500 1 Flute Coolant 1.26 Max DOC 5.000 OAL

ANSI: 12S1E-1502781R01

ISO: 12S1E-1502781R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031570
Delivery date: 3-5 days
$469.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Plunge Milling, Side Milling, Slot Milling, Drill Milling
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 18
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 1.2600
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Flutes/Inserts 1
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
