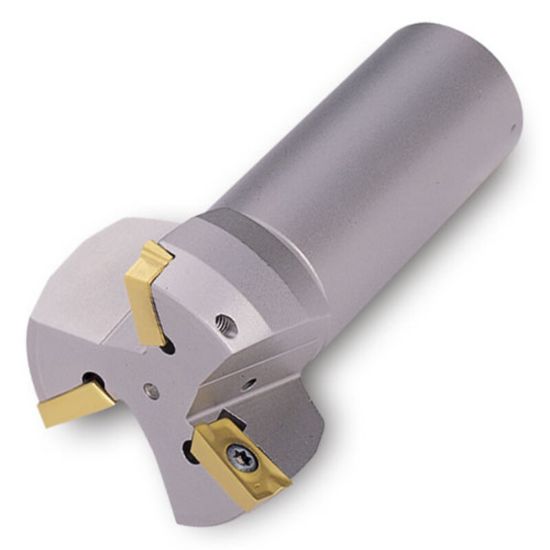

INGERSOLL 12R1B-0201084R01 Milling Cutter 15.0° 2.180 Weldon 0.7500 3 Flute Coolant 0.27 Max DOC 3.000 OAL

ANSI: 12R1B-0201084R01

ISO: 12R1B-0201084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3003571
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

GENERAL PURPOSE CHAFER TOOL USING TWO CORNER INSERT. LOTS OF GRADES AND EDGE PREPS AVAILABLE

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Chamfering
Insert Type Positive
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2700
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Overall Len 3.0000 76.20MM
Cut Dia Max 2.1800 55.37MM
Cut Dia Min 2.0000 50.80MM
Tool Material Steel
Insert Size Ic 16
Cutter Dia 2.1800 55.37MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style AP
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
