  • INGERSOLL 12P1D-0303287R01 Milling Cutter 30.0° 0.690 Cylindrical 0.5000 2 Flute 0.1 Max DOC 5.000 OAL

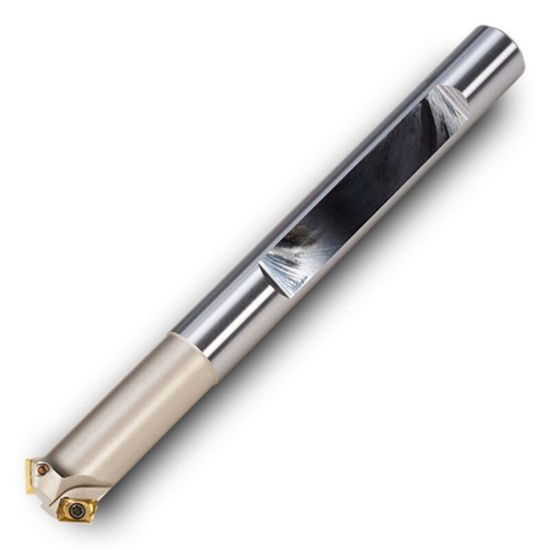

Picture of INGERSOLL 12P1D-0303287R01 Milling Cutter 30.0° 0.690 Cylindrical 0.5000 2 Flute 0.1 Max DOC 5.000 OAL

INGERSOLL 12P1D-0303287R01 Milling Cutter 30.0° 0.690 Cylindrical 0.5000 2 Flute 0.1 Max DOC 5.000 OAL

ANSI: 12P1D-0303287R01

ISO: 12P1D-0303287R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018989
Delivery date: 3-5 days
$203.47

Details

GENERAL PURPOSE CHAFER TOOL USING TWO CORNER INSERT. LOTS OF GRADES AND EDGE PREPS AVAILABLE

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Chamfering
Made In USA No
Shipping State Illinois
Package Size 1
Insert Type Positive
Dimensional Specifications
Cut Dia Min 0.3120 7.92MM
Overall Len 5.0000 127.00MM
Depth Of Cut Max 0.1000
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 6
Flutes/Inserts 2
Cut Dia Max 0.6900 17.53MM
Cutter Dia 0.6900 17.53MM
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru No
