  • INGERSOLL 12N1R020044W5R00 Milling Cutter 45.0° 0.787 Cylindrical 0.9843 3 Flute Coolant 0.3307 Max DOC 3.937 OAL

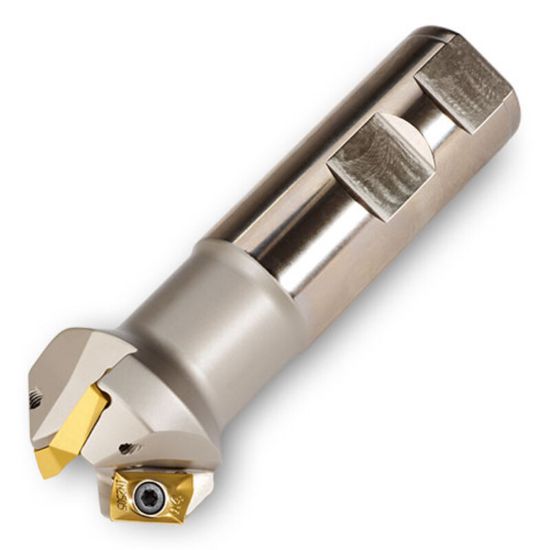

Picture of INGERSOLL 12N1R020044W5R00 Milling Cutter 45.0° 0.787 Cylindrical 0.9843 3 Flute Coolant 0.3307 Max DOC 3.937 OAL

INGERSOLL 12N1R020044W5R00 Milling Cutter 45.0° 0.787 Cylindrical 0.9843 3 Flute Coolant 0.3307 Max DOC 3.937 OAL

ANSI: 12N1R020044W5R00

ISO: 12N1R020044W5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027426
Delivery date: 3-5 days
$433.07
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Application Chamfering
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 3.9370 100.00MM
Cut Dia Min 0.7870 19.99MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 13
Depth Of Cut Max 0.3307
Cutter Dia 0.7870 19.99MM
Cut Dia Max 1.4520 36.88MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
