  • INGERSOLL 12N1Q-0201084R01 Milling Cutter 45.0° 0.900 Weldon 0.7500 1 Flute Coolant 0.3 Max DOC 3.000 OAL

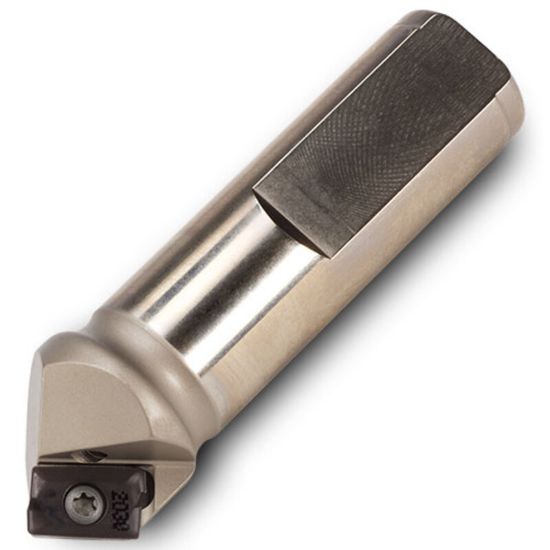

Picture of INGERSOLL 12N1Q-0201084R01 Milling Cutter 45.0° 0.900 Weldon 0.7500 1 Flute Coolant 0.3 Max DOC 3.000 OAL

INGERSOLL 12N1Q-0201084R01 Milling Cutter 45.0° 0.900 Weldon 0.7500 1 Flute Coolant 0.3 Max DOC 3.000 OAL

ANSI: 12N1Q-0201084R01

ISO: 12N1Q-0201084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3004770
Delivery date: 3-5 days
$246.40

Details

CHAMFER END MILL 2 CORNER INSERT. INSERT FITS MULTIPLE CUTTERS.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 12
Depth Of Cut Max 0.3000
Cutter Dia 0.9000 22.86MM
Flutes/Inserts 1
Overall Len 3.0000 76.20MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Min 0.2600 6.60MM
Tool Material Steel
Cut Dia Max 0.9000 22.86MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
