  • INGERSOLL 12N1D-0303287R01 Milling Cutter 45.0° 0.618 Cylindrical 0.5000 2 Flute 0.15 Max DOC 5.000 OAL

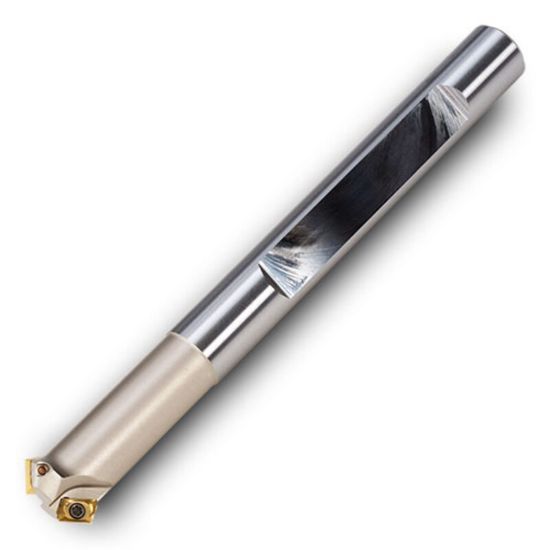

Picture of INGERSOLL 12N1D-0303287R01 Milling Cutter 45.0° 0.618 Cylindrical 0.5000 2 Flute 0.15 Max DOC 5.000 OAL

INGERSOLL 12N1D-0303287R01 Milling Cutter 45.0° 0.618 Cylindrical 0.5000 2 Flute 0.15 Max DOC 5.000 OAL

ANSI: 12N1D-0303287R01

ISO: 12N1D-0303287R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018990
Delivery date: 3-5 days
$203.47

Details

CHAMFER MILL TWO SIDED MICRO INSERT. GREAT FOR SMALL DIAMETER APLICATIONS

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Chamfering
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 6
Depth Of Cut Max 0.1500
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Cut Dia Min 0.3120 7.92MM
Cut Dia Max 0.6180 15.70MM
Overall Len 5.0000 127.00MM
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.6180 15.70MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
