  • INGERSOLL 12M1R-0701780R01 Milling Cutter 60.0° 0.750 Cylindrical 1.0000 3 Flute Coolant 0.4 Max DOC 4.000 OAL

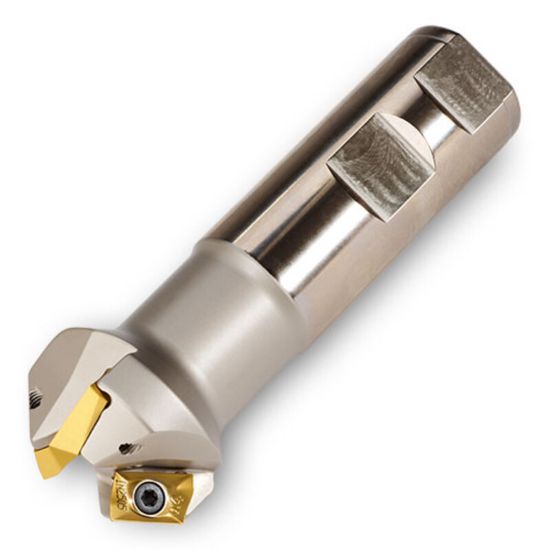

Picture of INGERSOLL 12M1R-0701780R01 Milling Cutter 60.0° 0.750 Cylindrical 1.0000 3 Flute Coolant 0.4 Max DOC 4.000 OAL

INGERSOLL 12M1R-0701780R01 Milling Cutter 60.0° 0.750 Cylindrical 1.0000 3 Flute Coolant 0.4 Max DOC 4.000 OAL

ANSI: 12M1R-0701780R01

ISO: 12M1R-0701780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2923902
Delivery date: 3-5 days
$377.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Chamfering, Chamfering
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.4000
Machine Side Connection Type Cylindrical
Overall Len 4.0000 101.60MM
Cut Dia Max 1.2200 30.99MM
Insert Size Ic 13
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
