  • INGERSOLL 12J4E-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 4.500 OAL

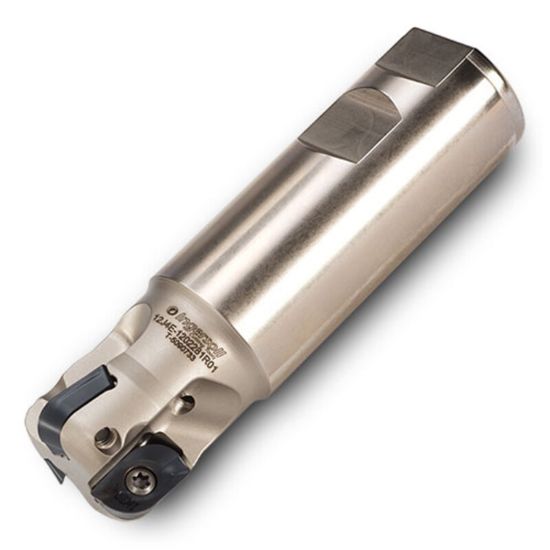

Picture of INGERSOLL 12J4E-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 4.500 OAL

INGERSOLL 12J4E-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 4.500 OAL

ANSI: 12J4E-1502281R01

ISO: 12J4E-1502281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018698
Delivery date: 3-5 days
$620.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Insert Size Ic 18
Depth Of Cut Max 0.6600
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 2.00°
