  • INGERSOLL 12J4E-1002780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.66 Max DOC 5.000 OAL

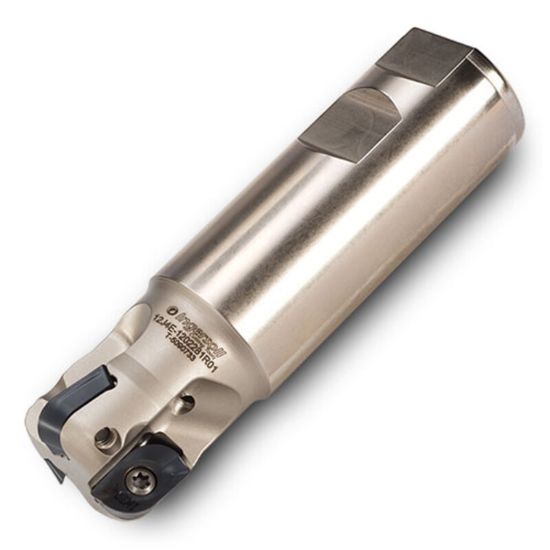

Picture of INGERSOLL 12J4E-1002780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.66 Max DOC 5.000 OAL

INGERSOLL 12J4E-1002780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.66 Max DOC 5.000 OAL

ANSI: 12J4E-1002780R01

ISO: 12J4E-1002780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018695
Delivery date: 3-5 days
$384.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.6600
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Insert Size Ic 18
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 4.00°
