  • INGERSOLL 12J4B-1202281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute 0.6 Max DOC 4.500 OAL

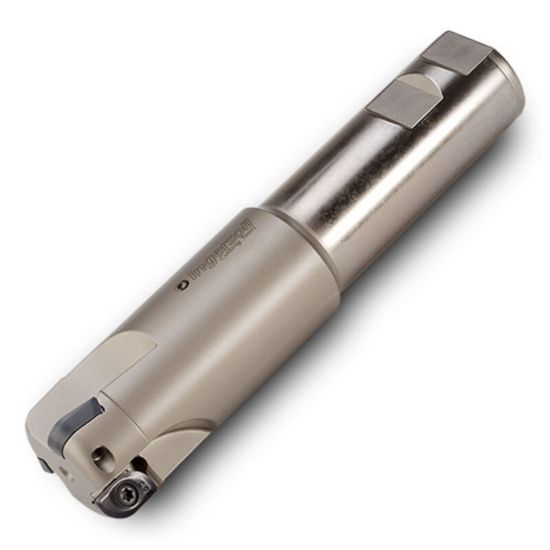

Picture of INGERSOLL 12J4B-1202281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute 0.6 Max DOC 4.500 OAL

INGERSOLL 12J4B-1202281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute 0.6 Max DOC 4.500 OAL

ANSI: 12J4B-1202281R01

ISO: 12J4B-1202281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002895
Delivery date: 3-5 days
$411.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Depth Of Cut Max 0.6000
Cut Dia Min 1.2500 31.75MM - 1-1/4
Tool Material Steel
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
