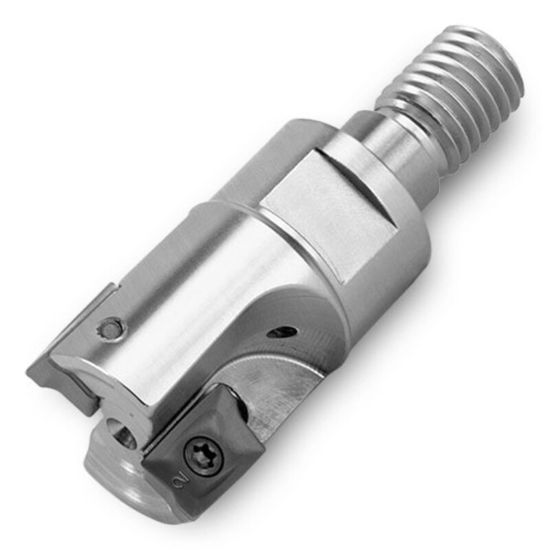

Picture of INGERSOLL 12J1X-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 4 Flute Coolant 0.49 Max DOC

INGERSOLL 12J1X-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 4 Flute Coolant 0.49 Max DOC

ANSI: 12J1X-12017X8R01

ISO: 12J1X-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024811
Delivery date: 3-5 days
$402.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Insert Size Ic 12
Tool Material Steel
Machine Side Connection Size M16
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.4900
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 3.50°
