  • INGERSOLL 12J1X-1201780R01 Milling Cutter 90.0° 1.250 Cylindrical 1.0000 4 Flute Coolant 0.49 Max DOC 4.000 OAL

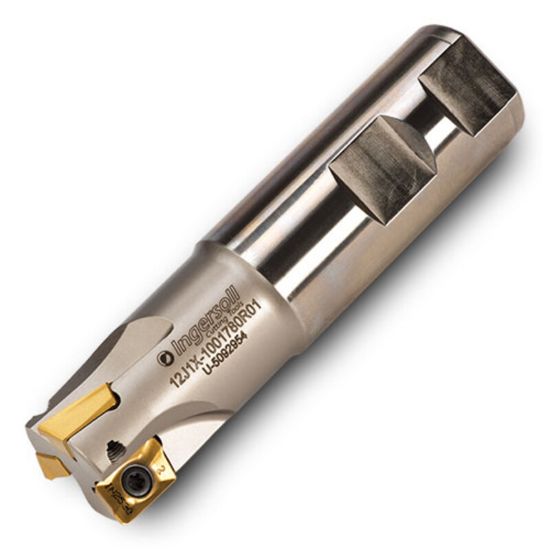

Picture of INGERSOLL 12J1X-1201780R01 Milling Cutter 90.0° 1.250 Cylindrical 1.0000 4 Flute Coolant 0.49 Max DOC 4.000 OAL

INGERSOLL 12J1X-1201780R01 Milling Cutter 90.0° 1.250 Cylindrical 1.0000 4 Flute Coolant 0.49 Max DOC 4.000 OAL

ANSI: 12J1X-1201780R01

ISO: 12J1X-1201780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024886
Delivery date: 3-5 days
$376.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.4900
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12
Flutes/Inserts 4
Tool Material Steel
Cut Dia Min 1.2500 31.75MM - 1-1/4
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Max Ramp Angle 3.50°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
