  • INGERSOLL 12J1X-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.49 Max DOC 6.000 OAL

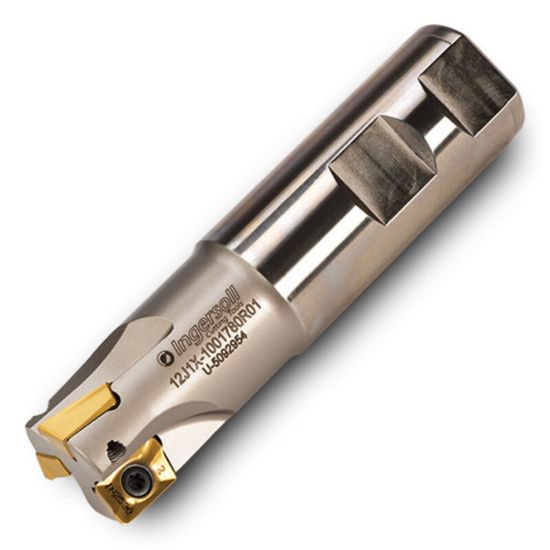

Picture of INGERSOLL 12J1X-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.49 Max DOC 6.000 OAL

INGERSOLL 12J1X-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.49 Max DOC 6.000 OAL

ANSI: 12J1X-1003780R01

ISO: 12J1X-1003780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024810
Delivery date: 3-5 days
$376.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 12
Flutes/Inserts 3
Depth Of Cut Max 0.4900
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
