  • INGERSOLL 12J1X-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.49 Max DOC 3.750 OAL

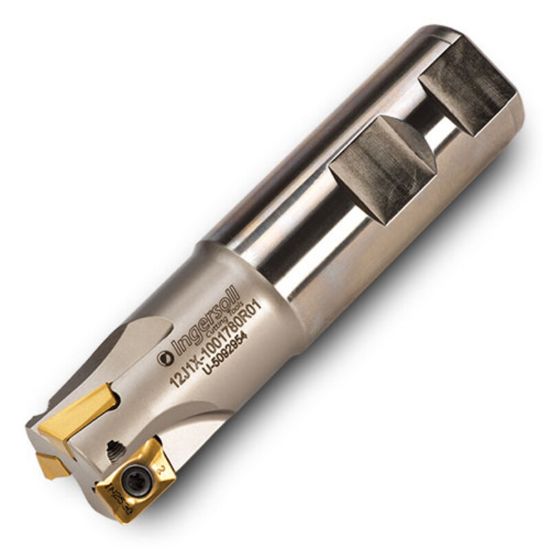

Picture of INGERSOLL 12J1X-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.49 Max DOC 3.750 OAL

INGERSOLL 12J1X-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.49 Max DOC 3.750 OAL

ANSI: 12J1X-1001784R01

ISO: 12J1X-1001784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024744
Delivery date: 3-5 days
$335.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Flutes/Inserts 3
Insert Size Ic 12
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.4900
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 4.50°
