  • INGERSOLL 12J1X-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.49 Max DOC 4.000 OAL

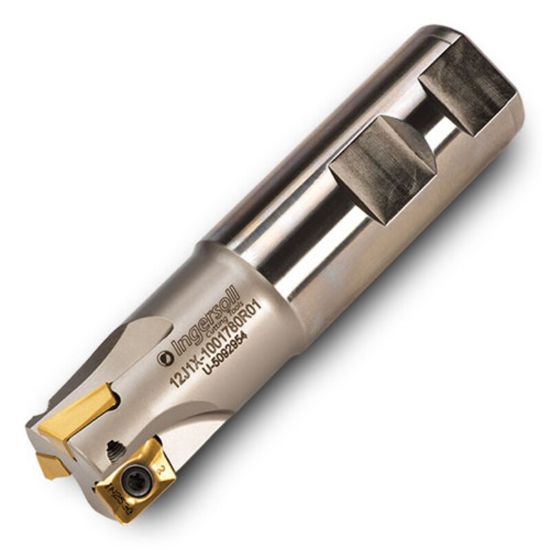

Picture of INGERSOLL 12J1X-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.49 Max DOC 4.000 OAL

INGERSOLL 12J1X-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.49 Max DOC 4.000 OAL

ANSI: 12J1X-1001780R01

ISO: 12J1X-1001780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024809
Delivery date: 3-5 days
$335.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Dimensional Specifications
Depth Of Cut Max 0.4900
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 3
Insert Size Ic 12
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 4.50°
Insert Style AO
