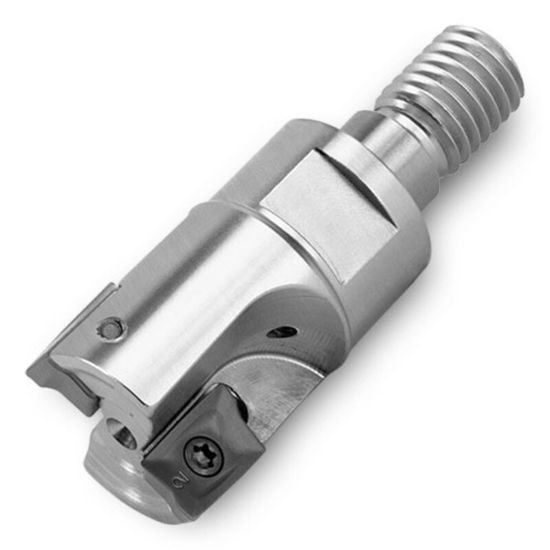

Picture of INGERSOLL 12J1X-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 3 Flute Coolant 0.49 Max DOC

INGERSOLL 12J1X-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 3 Flute Coolant 0.49 Max DOC

ANSI: 12J1X-10015X7R01

ISO: 12J1X-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024808
Delivery date: 3-5 days
$311.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 12
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Flutes/Inserts 3
Depth Of Cut Max 0.4900
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 4.50°
Insert Style AO
