  • INGERSOLL 12J1X-0705780R01 Milling Cutter 90.0° 0.750 Cylindrical 1.0000 2 Flute Coolant 0.49 Max DOC 8.000 OAL

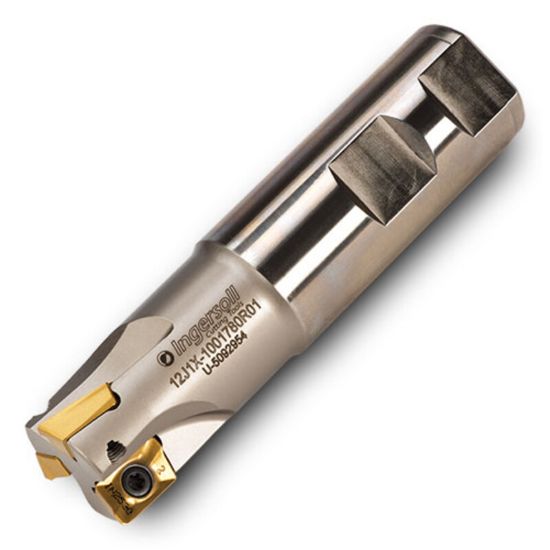

Picture of INGERSOLL 12J1X-0705780R01 Milling Cutter 90.0° 0.750 Cylindrical 1.0000 2 Flute Coolant 0.49 Max DOC 8.000 OAL

INGERSOLL 12J1X-0705780R01 Milling Cutter 90.0° 0.750 Cylindrical 1.0000 2 Flute Coolant 0.49 Max DOC 8.000 OAL

ANSI: 12J1X-0705780R01

ISO: 12J1X-0705780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024806
Delivery date: 3-5 days
$296.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.4900
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12
Flutes/Inserts 2
Cut Dia Min 0.7500 19.05MM - 3/4
Overall Len 8.0000 203.20MM
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
