  • INGERSOLL 12J1X-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.49 Max DOC 5.000 OAL

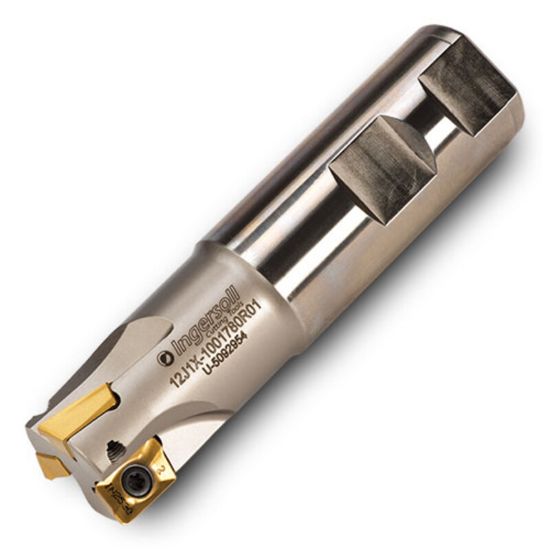

Picture of INGERSOLL 12J1X-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.49 Max DOC 5.000 OAL

INGERSOLL 12J1X-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.49 Max DOC 5.000 OAL

ANSI: 12J1X-0703084R01

ISO: 12J1X-0703084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024805
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Insert Size Ic 12
Flutes/Inserts 2
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.4900
Cutting & Machining Properties
Insert Style AO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 7.00°
