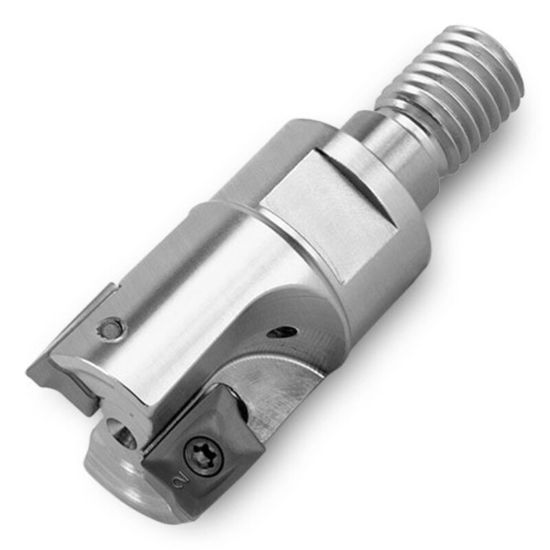

Picture of INGERSOLL 12J1X-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 2 Flute Coolant 0.49 Max DOC

INGERSOLL 12J1X-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 2 Flute Coolant 0.49 Max DOC

ANSI: 12J1X-07015X6R01

ISO: 12J1X-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024802
Delivery date: 3-5 days
$309.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4900
Machine Side Connection Type Screw On
Tool Material Steel
Machine Side Connection Size M10
Cut Dia Min 0.7500 19.05MM - 3/4
Insert Size Ic 12
Flutes/Inserts 2
Cutter Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 7.00°
Coolant Thru Yes
