  • INGERSOLL 12J1R032040W5R00 Milling Cutter 90.0° 1.260 Cylindrical 0.9843 4 Flute Coolant 0.4724 Max DOC 3.937 OAL

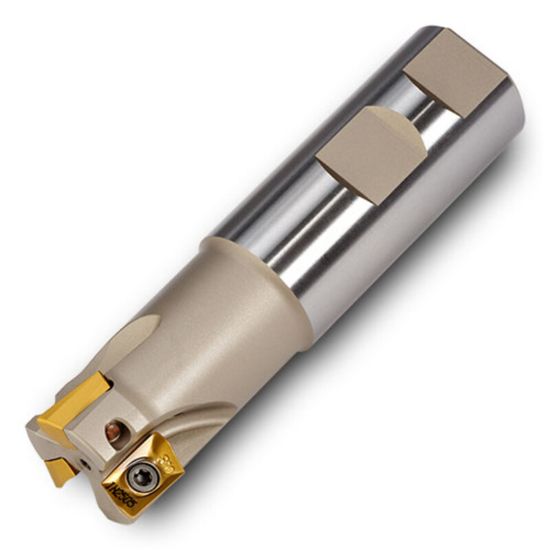

Picture of INGERSOLL 12J1R032040W5R00 Milling Cutter 90.0° 1.260 Cylindrical 0.9843 4 Flute Coolant 0.4724 Max DOC 3.937 OAL

INGERSOLL 12J1R032040W5R00 Milling Cutter 90.0° 1.260 Cylindrical 0.9843 4 Flute Coolant 0.4724 Max DOC 3.937 OAL

ANSI: 12J1R032040W5R00

ISO: 12J1R032040W5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3077455
Delivery date: 3-5 days
$478.80
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 3.9370 100.00MM
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Cutter Dia 1.2600 32.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 4
Insert Size Ic 13
Depth Of Cut Max 0.4724
Cutting & Machining Properties
Max Ramp Angle 5.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Coolant Thru Yes
