  • INGERSOLL 12J1R025040W5R01 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 2 Flute Coolant 0.4724 Max DOC 3.937 OAL

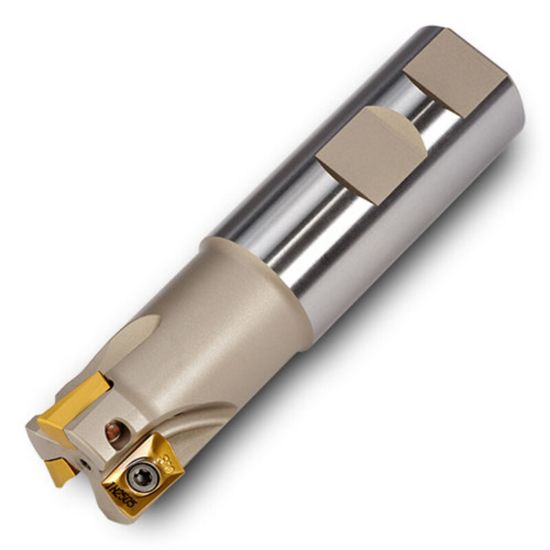

Picture of INGERSOLL 12J1R025040W5R01 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 2 Flute Coolant 0.4724 Max DOC 3.937 OAL

INGERSOLL 12J1R025040W5R01 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 2 Flute Coolant 0.4724 Max DOC 3.937 OAL

ANSI: 12J1R025040W5R01

ISO: 12J1R025040W5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057606
Delivery date: 3-5 days
$409.73
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Min 0.9840 24.99MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 3.9370 100.00MM
Depth Of Cut Max 0.4724
Tool Material Steel
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Insert Size Ic 13
Cutting & Machining Properties
Max Ramp Angle 7.90°
Insert Style BO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
