  • INGERSOLL 12J1R025040W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.4724 Max DOC 3.937 OAL

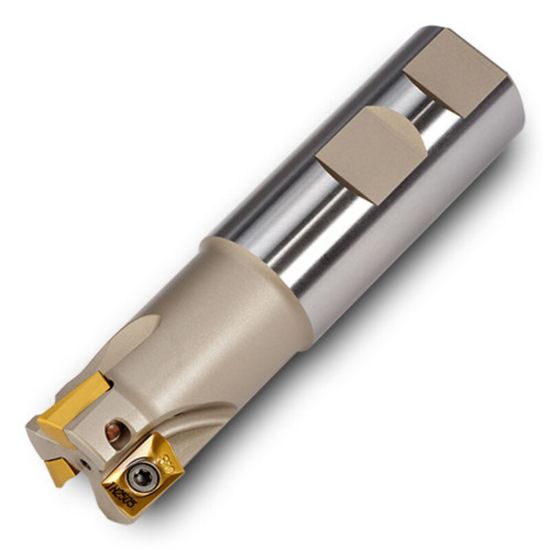

Picture of INGERSOLL 12J1R025040W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.4724 Max DOC 3.937 OAL

INGERSOLL 12J1R025040W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.4724 Max DOC 3.937 OAL

ANSI: 12J1R025040W5R00

ISO: 12J1R025040W5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3074941
Delivery date: 3-5 days
$409.73
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 3.9370 100.00MM
Depth Of Cut Max 0.4724
Flutes/Inserts 3
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Insert Size Ic 13
Cutting & Machining Properties
Max Ramp Angle 7.90°
Insert Style BO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
