  • INGERSOLL 12J1R-1501781R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 5 Flute Coolant 0.47 Max DOC 4.000 OAL

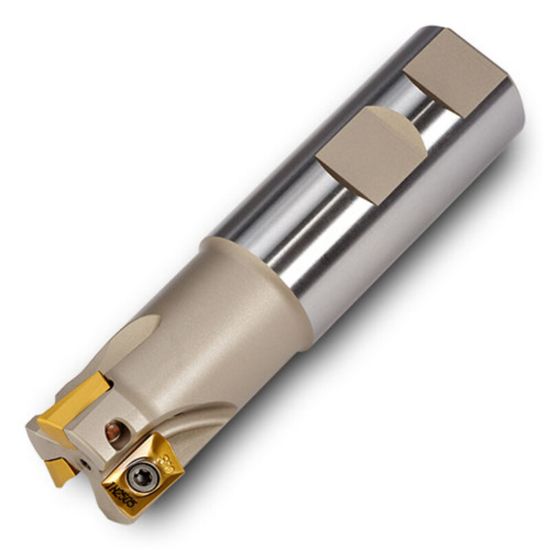

Picture of INGERSOLL 12J1R-1501781R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 5 Flute Coolant 0.47 Max DOC 4.000 OAL

INGERSOLL 12J1R-1501781R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 5 Flute Coolant 0.47 Max DOC 4.000 OAL

ANSI: 12J1R-1501781R01

ISO: 12J1R-1501781R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916679
Delivery date: 3-5 days
$568.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Side Milling, Pocket Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Insert Size Ic 13
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.4700
Overall Len 4.0000 101.60MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style BO
Max Ramp Angle 2.30°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
