  • INGERSOLL 12J1R-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.47 Max DOC 4.000 OAL

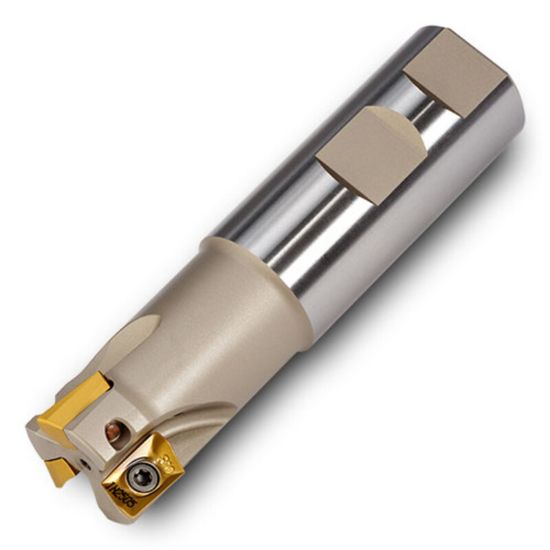

Picture of INGERSOLL 12J1R-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.47 Max DOC 4.000 OAL

INGERSOLL 12J1R-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.47 Max DOC 4.000 OAL

ANSI: 12J1R-1001780R01

ISO: 12J1R-1001780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3082447
Delivery date: 3-5 days
$409.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Insert Size Ic 13
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.4700
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Max Ramp Angle 7.90°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Coolant Thru Yes
