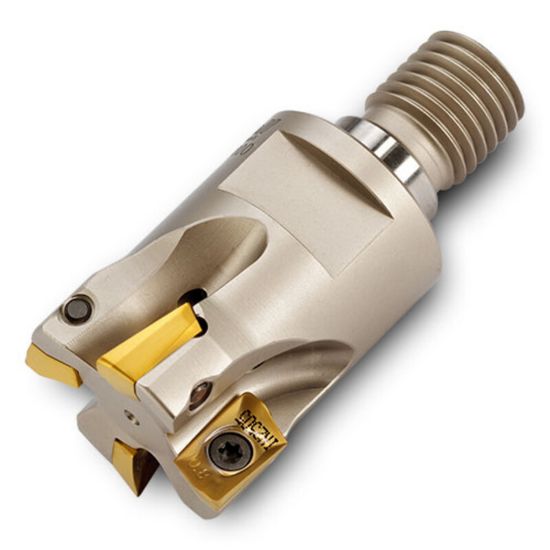

Picture of INGERSOLL 12J1R-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 3 Flute Coolant 0.47 Max DOC

INGERSOLL 12J1R-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 3 Flute Coolant 0.47 Max DOC

ANSI: 12J1R-10015X7R01

ISO: 12J1R-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916670
Delivery date: 3-5 days
$409.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.4700
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 3
Insert Size Ic 13
Cutting & Machining Properties
Insert Style BO
Coolant Thru Yes
Max Ramp Angle 4.60°
Insert Shape/Cutter Pocket Shape Parallelogram
