  • INGERSOLL 12J1R-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 5.000 OAL

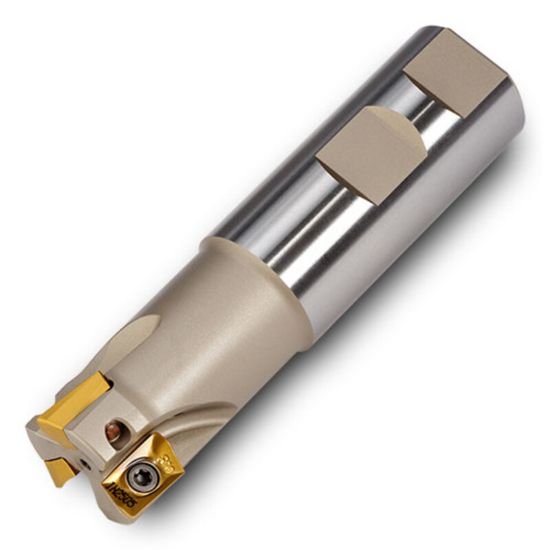

Picture of INGERSOLL 12J1R-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 5.000 OAL

INGERSOLL 12J1R-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 5.000 OAL

ANSI: 12J1R-0703084R01

ISO: 12J1R-0703084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916682
Delivery date: 3-5 days
$361.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.4700
Insert Size Ic 13
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style BO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 6.30°
