  • INGERSOLL 12J1R-0702084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 4.000 OAL

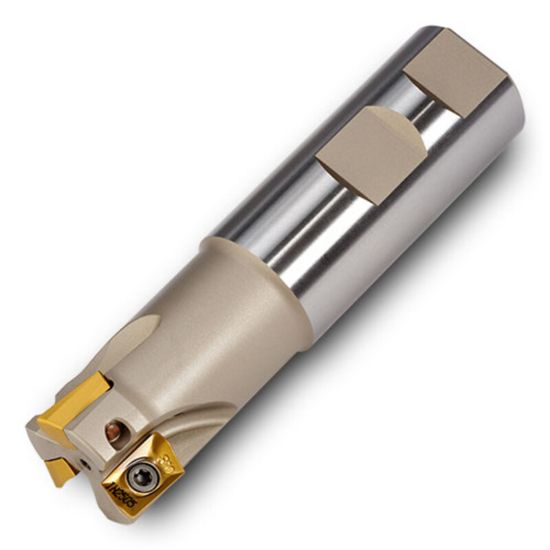

Picture of INGERSOLL 12J1R-0702084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 4.000 OAL

INGERSOLL 12J1R-0702084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 4.000 OAL

ANSI: 12J1R-0702084R01

ISO: 12J1R-0702084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3080016
Delivery date: 3-5 days
$339.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Package Size 1
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Flutes/Inserts 1
Insert Size Ic 13
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.4700
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 6.30°
Coolant Thru Yes
Insert Style BO
