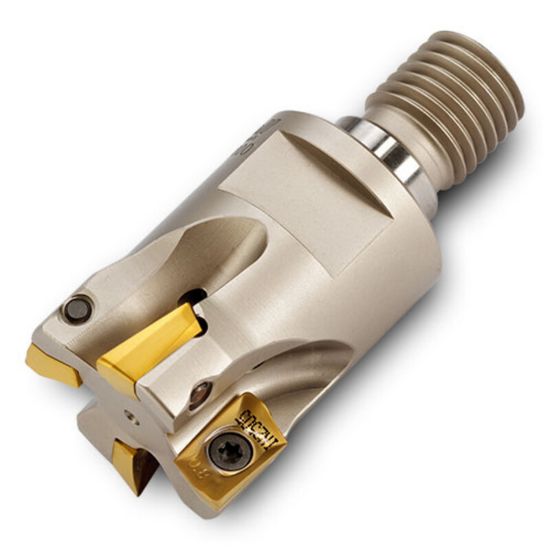

Picture of INGERSOLL 12J1R-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 2 Flute Coolant 0.47 Max DOC

INGERSOLL 12J1R-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 2 Flute Coolant 0.47 Max DOC

ANSI: 12J1R-07015X6R01

ISO: 12J1R-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916669
Delivery date: 3-5 days
$350.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.4700
Flutes/Inserts 2
Machine Side Connection Type Screw On
Insert Size Ic 13
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size M10
Cutting & Machining Properties
Coolant Thru Yes
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 6.30°
