  • INGERSOLL 12J1R-0701284R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 3.250 OAL

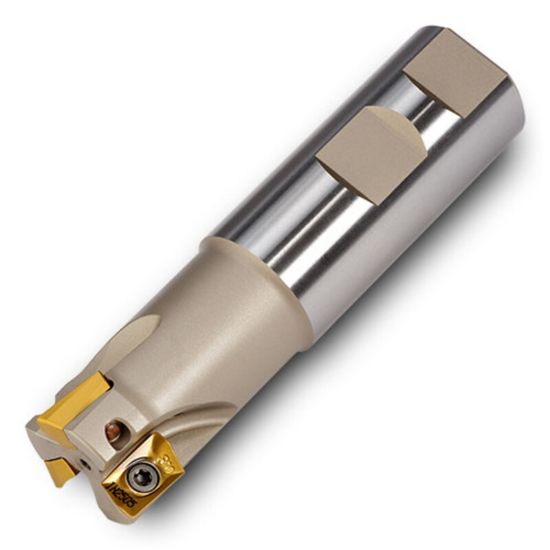

Picture of INGERSOLL 12J1R-0701284R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 3.250 OAL

INGERSOLL 12J1R-0701284R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 3.250 OAL

ANSI: 12J1R-0701284R01

ISO: 12J1R-0701284R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916683
Delivery date: 3-5 days
$350.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Face Milling, Pocket Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Overall Len 3.2500 82.55MM
Machine Side Connection Type Weldon
Insert Size Ic 13
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Material Steel
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.4700
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Coolant Thru Yes
Max Ramp Angle 6.30°
