  • INGERSOLL 12J1Q-1201784R01 Milling Cutter 90.0° 1.250 Weldon 0.7500 4 Flute Coolant 0.47 Max DOC 3.750 OAL

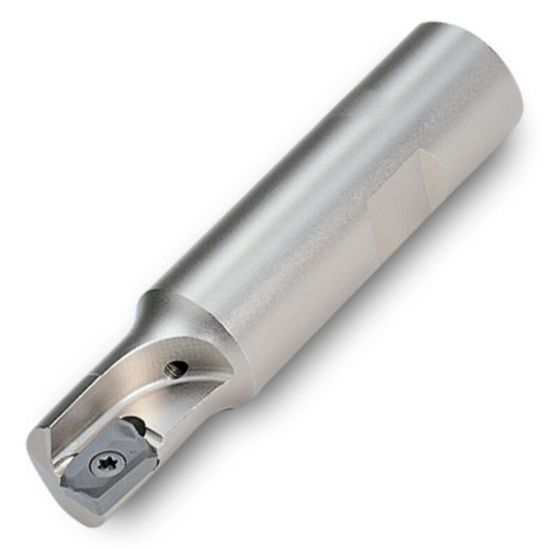

Picture of INGERSOLL 12J1Q-1201784R01 Milling Cutter 90.0° 1.250 Weldon 0.7500 4 Flute Coolant 0.47 Max DOC 3.750 OAL

INGERSOLL 12J1Q-1201784R01 Milling Cutter 90.0° 1.250 Weldon 0.7500 4 Flute Coolant 0.47 Max DOC 3.750 OAL

ANSI: 12J1Q-1201784R01

ISO: 12J1Q-1201784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001323
Delivery date: 3-5 days
$372.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.4700
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Insert Size Ic 12
Flutes/Inserts 4
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 2.00°
Insert Style AP
