  • INGERSOLL 12J1Q-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.47 Max DOC 3.750 OAL

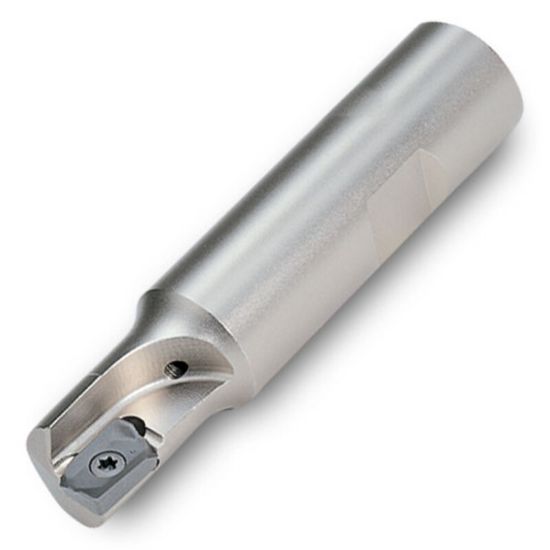

Picture of INGERSOLL 12J1Q-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.47 Max DOC 3.750 OAL

INGERSOLL 12J1Q-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.47 Max DOC 3.750 OAL

ANSI: 12J1Q-1001784R01

ISO: 12J1Q-1001784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001322
Delivery date: 3-5 days
$332.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.4700
Flutes/Inserts 3
Insert Size Ic 12
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Max Ramp Angle 3.30°
Coolant Thru Yes
