  • INGERSOLL 12J1Q-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.47 Max DOC 4.000 OAL

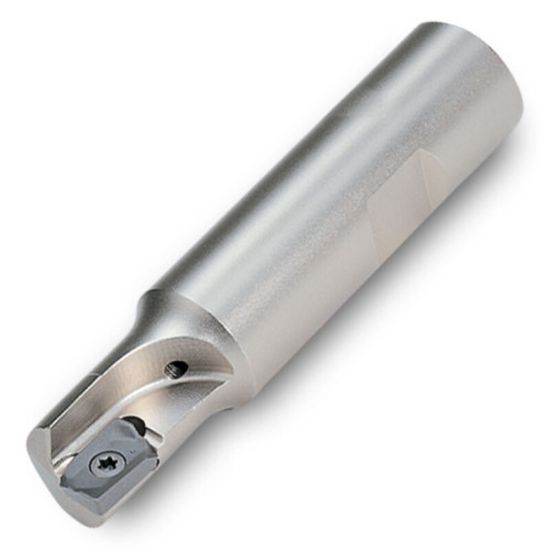

Picture of INGERSOLL 12J1Q-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.47 Max DOC 4.000 OAL

INGERSOLL 12J1Q-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.47 Max DOC 4.000 OAL

ANSI: 12J1Q-1001780R01

ISO: 12J1Q-1001780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3010689
Delivery date: 3-5 days
$332.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Side Milling, Pocket Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4700
Overall Len 4.0000 101.60MM
Insert Size Ic 12
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style AP
Max Ramp Angle 3.30°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
