  • INGERSOLL 12J1Q-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 5.000 OAL

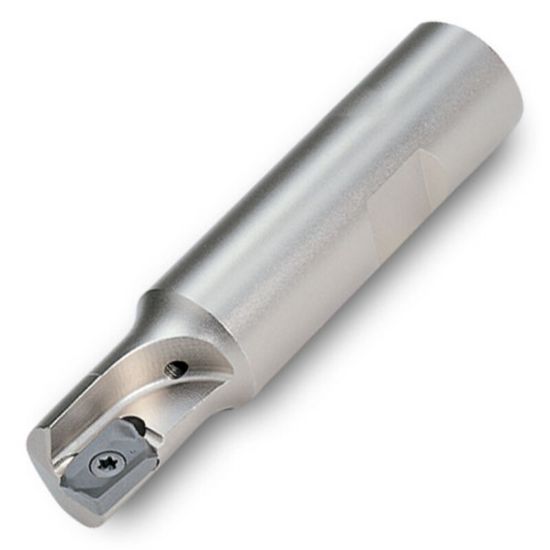

Picture of INGERSOLL 12J1Q-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 5.000 OAL

INGERSOLL 12J1Q-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 5.000 OAL

ANSI: 12J1Q-0703084R01

ISO: 12J1Q-0703084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002228
Delivery date: 3-5 days
$284.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.4700
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 12
Flutes/Inserts 2
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 4.20°
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
