  • INGERSOLL 12J1Q-0702280R01 Milling Cutter 90.0° 0.750 Cylindrical 1.0000 2 Flute Coolant 0.47 Max DOC 8.000 OAL

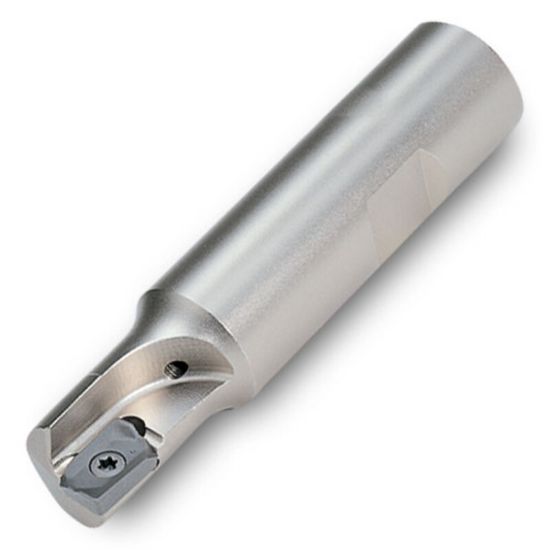

Picture of INGERSOLL 12J1Q-0702280R01 Milling Cutter 90.0° 0.750 Cylindrical 1.0000 2 Flute Coolant 0.47 Max DOC 8.000 OAL

INGERSOLL 12J1Q-0702280R01 Milling Cutter 90.0° 0.750 Cylindrical 1.0000 2 Flute Coolant 0.47 Max DOC 8.000 OAL

ANSI: 12J1Q-0702280R01

ISO: 12J1Q-0702280R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3006330
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Application Semi Finishing, Roughing
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Overall Len 8.0000 203.20MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.7500 19.05MM - 3/4
Insert Size Ic 12
Flutes/Inserts 2
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.4700
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Max Ramp Angle 4.20°
Coolant Thru Yes
