  • INGERSOLL 12J1Q-0702084R01 Milling Cutter 90.0° 0.725 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 4.000 OAL

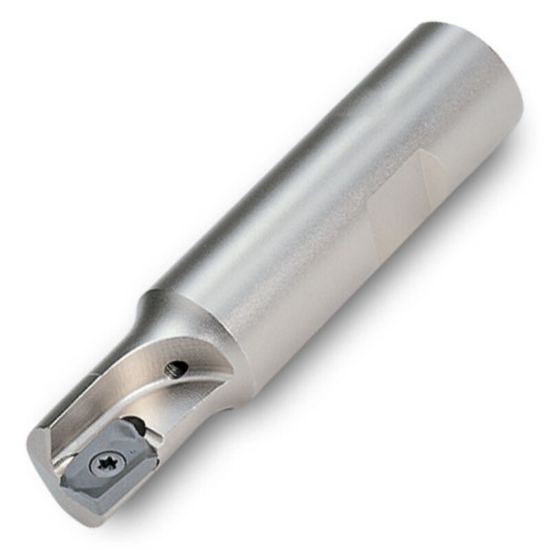

Picture of INGERSOLL 12J1Q-0702084R01 Milling Cutter 90.0° 0.725 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 4.000 OAL

INGERSOLL 12J1Q-0702084R01 Milling Cutter 90.0° 0.725 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 4.000 OAL

ANSI: 12J1Q-0702084R01

ISO: 12J1Q-0702084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002249
Delivery date: 3-5 days
$284.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4700
Cut Dia Min 0.7250 18.42MM
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Insert Size Ic 12
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.7250 18.42MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 4.20°
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
