  • INGERSOLL 12J1Q-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 3.750 OAL

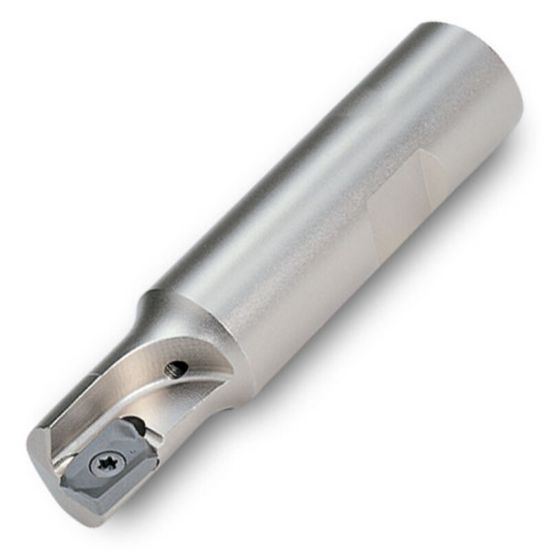

Picture of INGERSOLL 12J1Q-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 3.750 OAL

INGERSOLL 12J1Q-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.47 Max DOC 3.750 OAL

ANSI: 12J1Q-0701784R01

ISO: 12J1Q-0701784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001321
Delivery date: 3-5 days
$284.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.4700
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Insert Size Ic 12
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 4.20°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
