  • INGERSOLL 12J1Q-0601584R01 Milling Cutter 90.0° 0.625 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.500 OAL

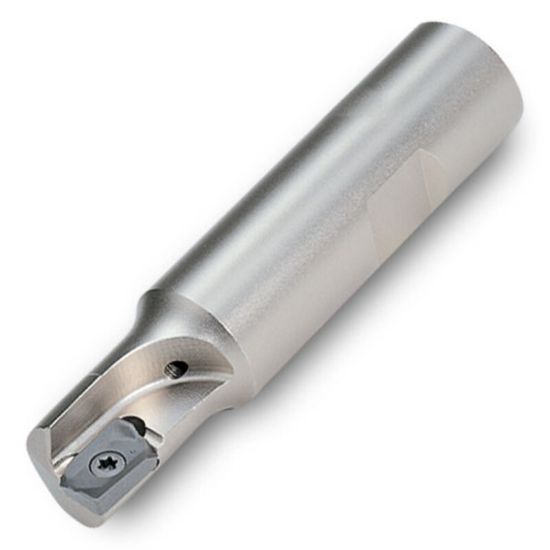

Picture of INGERSOLL 12J1Q-0601584R01 Milling Cutter 90.0° 0.625 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.500 OAL

INGERSOLL 12J1Q-0601584R01 Milling Cutter 90.0° 0.625 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.500 OAL

ANSI: 12J1Q-0601584R01

ISO: 12J1Q-0601584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001320
Delivery date: 3-5 days
$243.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Depth Of Cut Max 0.4700
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Insert Size Ic 12
Flutes/Inserts 1
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Coolant Thru Yes
Insert Style AP
Max Ramp Angle 3.20°
Insert Shape/Cutter Pocket Shape Parallelogram
