  • INGERSOLL 12J1Q-0501584R01 Milling Cutter 90.0° 0.490 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.500 OAL

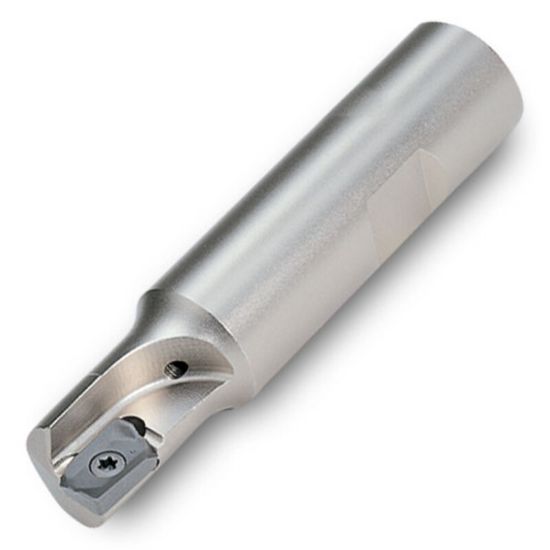

Picture of INGERSOLL 12J1Q-0501584R01 Milling Cutter 90.0° 0.490 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.500 OAL

INGERSOLL 12J1Q-0501584R01 Milling Cutter 90.0° 0.490 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.500 OAL

ANSI: 12J1Q-0501584R01

ISO: 12J1Q-0501584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002945
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Weldon
Insert Size Ic 12
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Cutter Dia 0.4900 12.45MM
Cut Dia Min 0.4900 12.45MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.5000 88.90MM
Depth Of Cut Max 0.4700
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Max Ramp Angle 3.20°
Coolant Thru Yes
