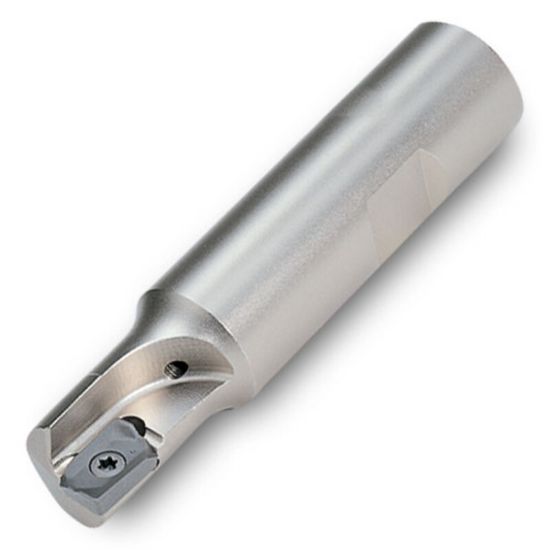

Picture of INGERSOLL 12J1Q-0501284R02 Milling Cutter 90.0° 0.500 Weldon 0.7500 1 Flute 0.47 Max DOC 3.250 OAL

INGERSOLL 12J1Q-0501284R02 Milling Cutter 90.0° 0.500 Weldon 0.7500 1 Flute 0.47 Max DOC 3.250 OAL

ANSI: 12J1Q-0501284R02

ISO: 12J1Q-0501284R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012404
Delivery date: 3-5 days
$242.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Insert Size Ic 12
Flutes/Inserts 1
Depth Of Cut Max 0.4700
Machine Side Connection Type Weldon
Cutter Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Max Ramp Angle 3.20°
Insert Shape/Cutter Pocket Shape Parallelogram
