  • INGERSOLL 12J1Q-0501284R01 Milling Cutter 90.0° 0.500 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.250 OAL

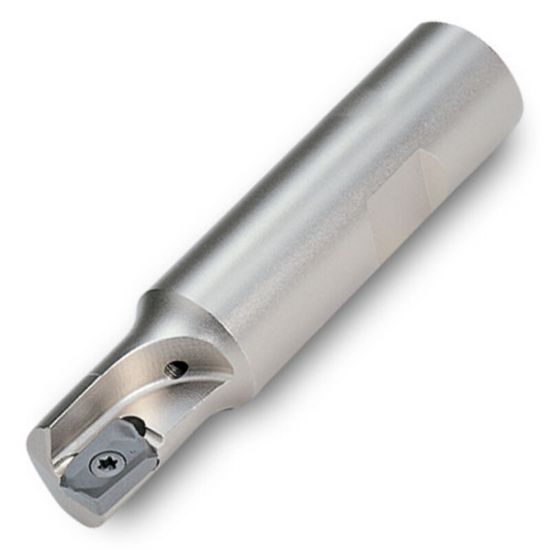

Picture of INGERSOLL 12J1Q-0501284R01 Milling Cutter 90.0° 0.500 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.250 OAL

INGERSOLL 12J1Q-0501284R01 Milling Cutter 90.0° 0.500 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.250 OAL

ANSI: 12J1Q-0501284R01

ISO: 12J1Q-0501284R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002875
Delivery date: 3-5 days
$242.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Pocket Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4700
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Machine Side Connection Type Weldon
Cut Dia Min 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 12
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Overall Len 3.2500 82.55MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AP
Max Ramp Angle 3.20°
