  • INGERSOLL 12J1P025085W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.3543 Max DOC 5.708 OAL

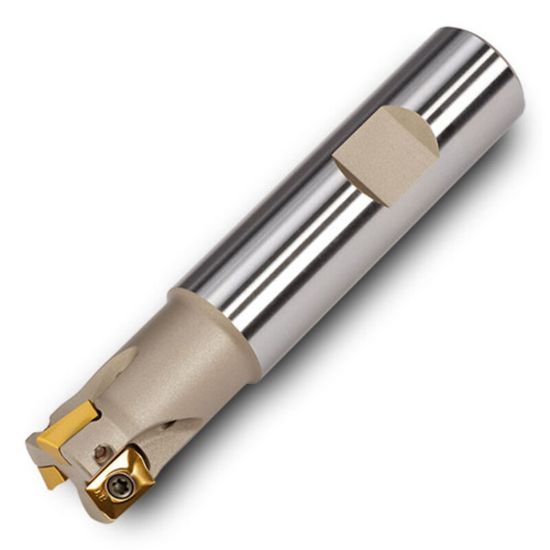

Picture of INGERSOLL 12J1P025085W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.3543 Max DOC 5.708 OAL

INGERSOLL 12J1P025085W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.3543 Max DOC 5.708 OAL

ANSI: 12J1P025085W5R00

ISO: 12J1P025085W5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027492
Delivery date: 3-5 days
$434.00
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Shipping State Illinois
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3543
Flutes/Inserts 3
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 5.7087 145.00MM
Insert Size Ic 9
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style BO
Max Ramp Angle 4.40°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
